Unilin Click Rigid Vinyl Flooring With Wood Grain Surface Treatment

Unilin Click Rigid Vinyl Flooring With Wood Grain Surface Treatment

  • Unilin Click Rigid Vinyl Flooring With Wood Grain Surface Treatment
Unilin Click Rigid Vinyl Flooring With Wood Grain Surface Treatment
Product Details:
Place of Origin: China
Brand Name: Shire
Certification: CE / SGS / ISO9001
Model Number: SH-S-8097
Payment & Shipping Terms:
Minimum Order Quantity: 3,000 meter/meters or 1x20'ft container
Price: $6.5 - $10
Packaging Details: Box Size:180*1220*6mm Pallet Size:1250*970*800
Delivery Time: Within 18 days after deposit received.
Payment Terms: T/T, L/C, Western Union, MoneyGram,Paypal
Supply Ability: 500,000 square meters per month
Contact Now
Detailed Product Description
Product Name: Unilin Click Rigid Vinyl Flooring With Wood Grain Surface Treatment Material: SPC/PVC
Usage: Indoor Surface Treatment: Wood Grain
Total Thickness: 4.0mm / 5.0mm / 5.5mm Wear Layer: 0.3mm / 0.5mm
Backing: IXPE Function: Waterproof, Wear Resistant , Anti-slip,Fireproof
Design: Wood Grain Or Customrized Application: Family & Commercial
High Light:

stone plastic composite flooring

,

wood grain vinyl flooring

Unilin Click Rigid Vinyl Flooring With Wood Grain Surface Treatment



Description


Shire Unilin Click Rigid Vinyl Flooring With Wood Grain Surface Treatment​ ​is easy to installate ,this spc vinyl flooring is the new generation of floor covering, more environmental and durable .The main components are limestone (Calcium carbonate) and PVC resin and PVC Calcium-zinc Stabilizer and PVC Lubricant. Difference from LVC flooring, there is no plasticizer inside, so it is more environmentally friendly. Difference from Engineered Wood flooring and Laminate flooring, there is no glue inside, so it is much healthier. SPC flooring mainly structured with the UV coating layer, transparent wear-resistant layer, printing decoration layer, SPC Vinyl layer (the SPC core) and cork or EVA base.



Structure




SPC Flooring has several main layers as below

Unilin Click Rigid Vinyl Flooring With Wood Grain Surface Treatment 0

Installation ways


Tools and materials needed

· Utility knife & straight edge

· Measuring tape

· Shears for cutting around irregular shaped objects

· 1/8” spacers

· Transition moldings and baseboards

Installation

· Installation should begin with a corner and proceed from the wall with the tongue facing away from the wall. Allow a minimum gap of 3/8” (10mm) for product expansion. Transition moldings or baseboards will cover the gap.

· When laying the first row in a straight line interlock the short ends by inserting the tongue into the grooves at an angle of about 15 to 20 degrees. Install sequential plank on the short end (5.75”) and be sure to line up evenly. Place this first row along the chosen wall respecting the minimum gap by using spacers.

· Keep the seams tight between planks. You will feel and hear the click when locking the planks together to create a tight seam. There should be no visible gap between planks. If seams do not appear tight, pull the planks apart immediately and try again.

· When installing our SPC, it is strongly suggested to stagger the rows so that the short edge seams are not in a straight uniform line.

· To start the second row, measure and mark the plank, then using a straight edge and utility knife, score the plank and snap it.

· Interlock the first plank of the second row again at a 15-20 degree angle. For the next planks, interlock the short side first, leaving it slightly away from the long side and then slide it into the long side in the same manner. Start the third row with the last plank remaining from the previous row.



Specification


Products Data
Viny flooring tile dimension 6"×36",7"×36",6"×48",
7"×48",8"×48",or Customized
Thickness 3.0mm~8.0mm
Wear layer thickness 0.3mm,0.5mm,0.7mm
Available Surfaces Wood Grain Embossed ,Marble ,EIR ,Handscraped
Surface finish Glossy,matte,semi-matte
Safety Criteria Standard Value
Flammability EN13501-1 Bf1
Slip Resistance EN13893 DS
Formaldehyde Emission EN717-1 None
Castor Wheel Test EN425 Pass
Color Fastness ISO105-BO2 ≥6
Determination of Migration of Heavy Metals EN71 None
Perfomance Standard Value
Wear Resistance EN-660-2 ≤0.015g
Flexibility EN435 No damage
Curling After Exposure To heat EN434 ≤1.2mm(80℃,6hrs)
Peel Resistance EN431 ≥2.8Kgf/cm2
Dimensional Stability EN434 ≤0.08%(80℃,6hrs)
Residual Indentation EN434 ≤0.1mm



SPC  Flooring are not only manufactured from the highest grade materials but also resemble real natural patterns as closely and as realistically as possible.

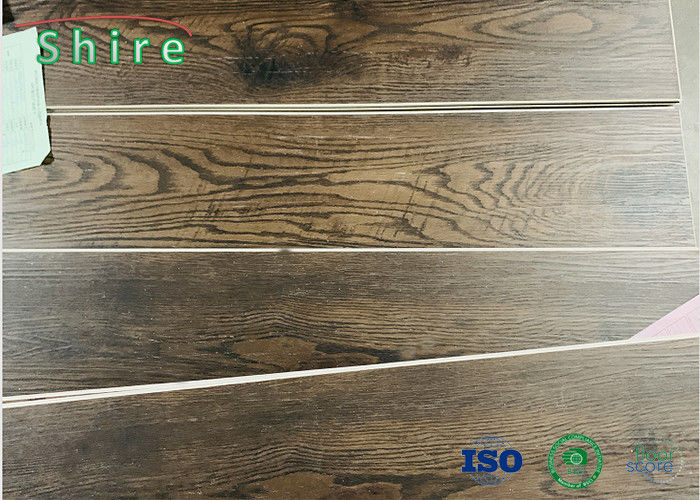

Product Picture


Unilin Click Rigid Vinyl Flooring With Wood Grain Surface Treatment 1
